DESTROYIT 5009

The ultimate in High Capacity data destruction. Conveyor-fed shredder features a sheet capacity of over 600 and a 79 gallon shred volume. An optional exit conveyor belt system increases shred capacity by transporting shredded material to an external container. Centralized oiler provides lubrication for the cutting shafts.

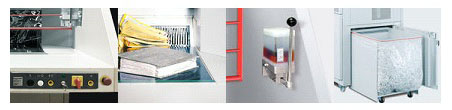

Extra large feed table with powered conveyor belt feed system. Convenient centralized oiler for lubrication of the cutting shafts. Electronically controlled safety guard. Safety lock and key, main switch, and emergency stop button. Automatic power cut-off when cabinet is opened or shred bag is full. Automatic reverse and power cut-off when overfed. Thermal switch prevents overheating. Push button control panel with optical indicators to show operational status. 2 automatic speed modes: POWER for bulk feeding large quantities of paper and SPEED for high speed shredding of lesser amounts. Soft metal resistant, hardened steel cutting shafts take CDs / DVDs, hardbound documents, and 3-ring binders. Lifetime warranty on the cutting shafts. Dual 3 phase motors (24 maximum horsepower) rated for continuous operation. Fully enclosed gear box housing. Mounted on heavy duty casters. Rear opening cabinet door and mobile shred bin with bag mounting frame for easy replacement of shred bags. Optional accessories: modular exit conveyor belt system and additional shred bins.

Shred volume, gallons: 79
Feed opening, inches: 20
Electrical requirements, volts: 220, 3 phase (50 amp. dedicated line required)
Maximum horsepower: 24
Dimensions (D x W x H), inches: 85 1/2 x 40 3/4 x 67 1/2 (121 D with modular exit conveyor belt system)
Shipping weight, pounds: 3,080

5009 CROSS-CUT

5009 CROSS-CUT

Related Products

• MODULAR CONVEYOR BELT SYSTEM
• 923 SHRED BAGS (OLD STYLE)
• 924 SHRED BAGS (NEW STYLE)
• DESTROYIT SPECIAL FORMULA SHREDDER OIL
• SHRED COLLECTION CART FOR 5009

Related Documents

• op manual
• spec sheet

*Certified using 8 1/2" x 11" 20 pound bond and recommended power supply.
